Elevate Your Productivity To A Whole New Level

The AKYAPAK® APK Small Series Angle Roll machines are constructed using St-52 welds, making them reliable and strong. With an enlarged roll diameter, minimum flexion is ensured, which prevents any unnecessary deformations.

The durability and high bending momentum of the APK machines are insured due to the large measurements of bearings. Our hydraulic cylinders are immensely powerful, making the bending of larger parts seem effortless.

The practical and universal rollers give you the opportunity to easily bend a variety of sections, resulting in a more robust machine. The fact that our profile bending machines are 3 rolls driven gives you the chance to accomplish high-capacity bending processes, while simultaneously minimizing the slipping of the materials during the bending process.

Additionally, the AKYAPAK® APK Small Series Angle Rolls offer a unique feature not seen in top roll driven machines: the ability to make a pre-bending process on both edges, thus enhancing the operators’ abilities.

Side supporters that move towards three different directions make bending processes a breeze, especially when dealing with angles and spirals. Our machines are incomparable, thanks to their top-notch features.

STANDARD FEATURES

Steel (St-52) construction body

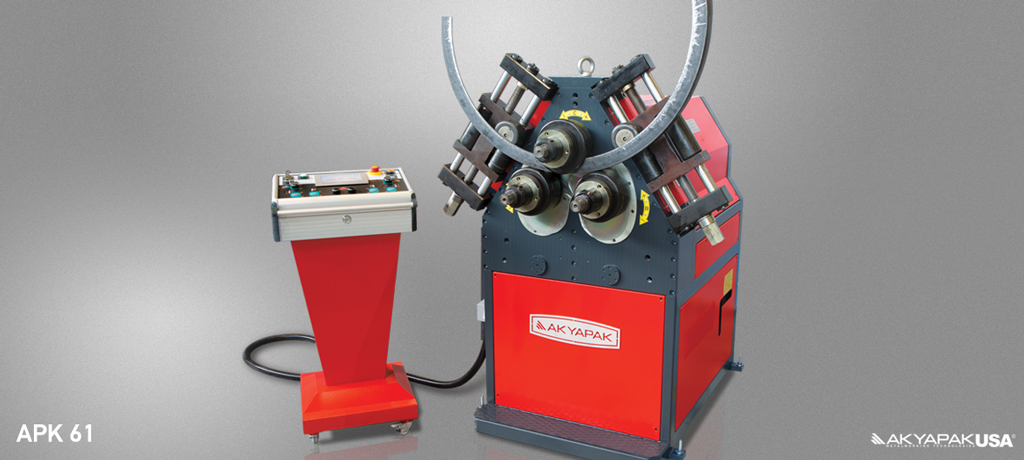

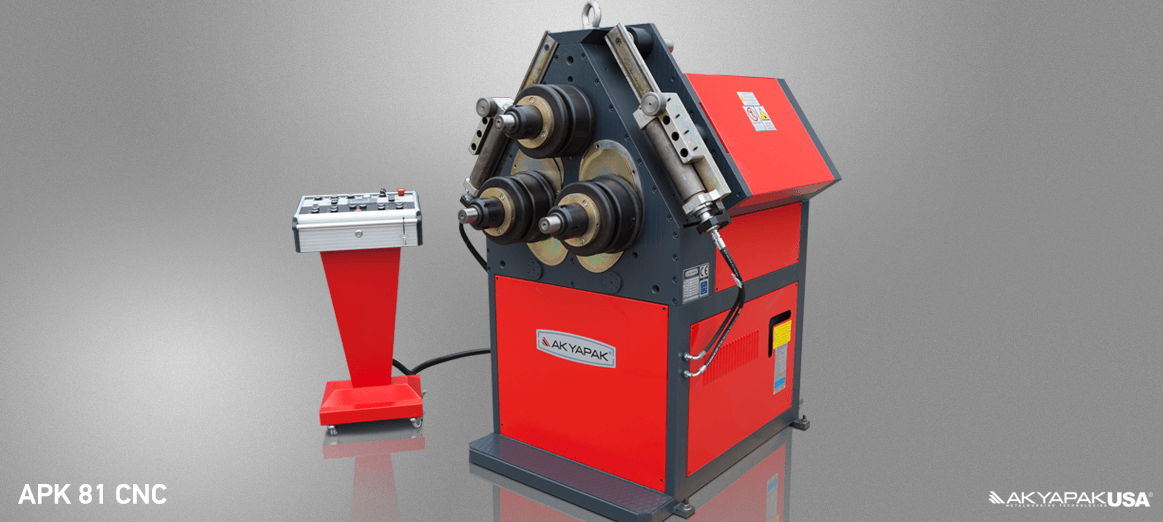

On APK 61-81, rolls are driven by a hydraulic motor and planetary gearbox and gears
Shafts are made of special steel (42CrMo4), hardened and grinded
One set standard rolls
Lower rolls hydraulically moveable up and down
Digital display for lower rolls
Separate and moveable control panel
Guide rolls are adjustable manually in one direction
Manual lubrication
Certified by CE, ISO 9001 – 2008, TSEK and TURQUM
