Tech Specifications
Optional Diameter: Ø10mm-Ø120mm (0.39″ – 4.7″)
| Tube range (length): | 295″ (7500 mm) |
| Tube diameter: | Standard: 0.78″- 8.66″ (20- 220 mm) Optional: 0.39″- 4.7″ (10- 120 mm) |
| X-axis: | 295″ (7500 mm) |
| Y-axis: | 7.87″ (200 mm) |
| A, B-axis: | Infinite Rotation |
| Loading Capacity: | 220 Chuck: 342 lbs; 120 Chuck: 154 lbs. |
| X, Y-axis positioning accuracy: | ±0.03 mm/1000 mm |
| X, Y-axis re-positioning accuracy: | ±0.05 mm |
| A, B-axis positioning accuracy: | ±30″ |
| A, B-axis re-positioning accuracy: | ±10″ |
| X, Y-axis max positioning speed: | 100 m/min |
| Max positioning speed: | 100 rpm |
| Laser resonator: | IPG 3 KW or BC Power 3KW |
| Optional laser wattage: | BC Power 3KW, 4KW |
| Laser head: | Raytools |
| Machine Weight: | 14330 lbs (6500 kg) |
| Dimensions: | 472″x 87″ x 91″(12000 x 2200 x 2300 mm) |

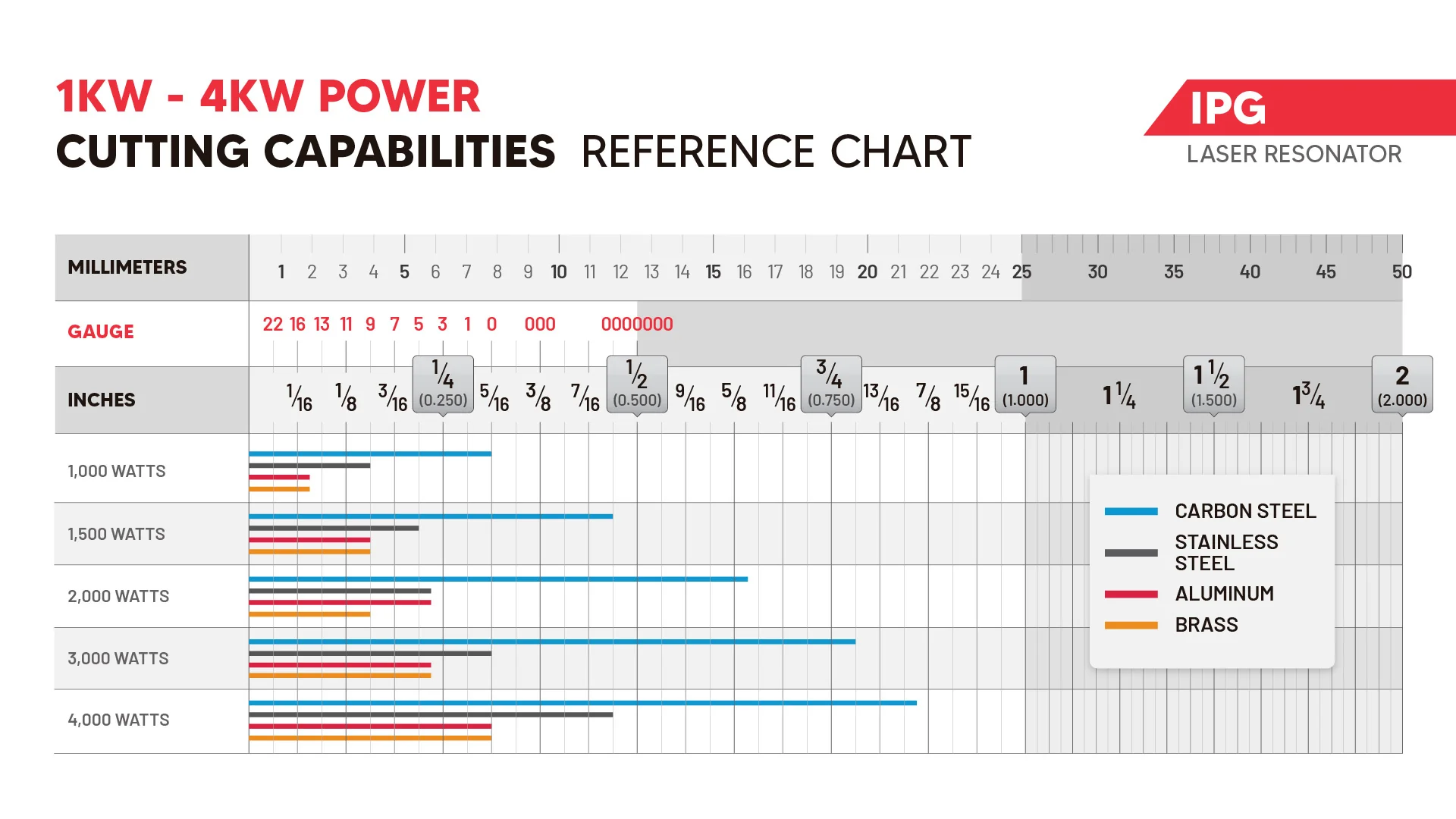

Cutting Capabilities
