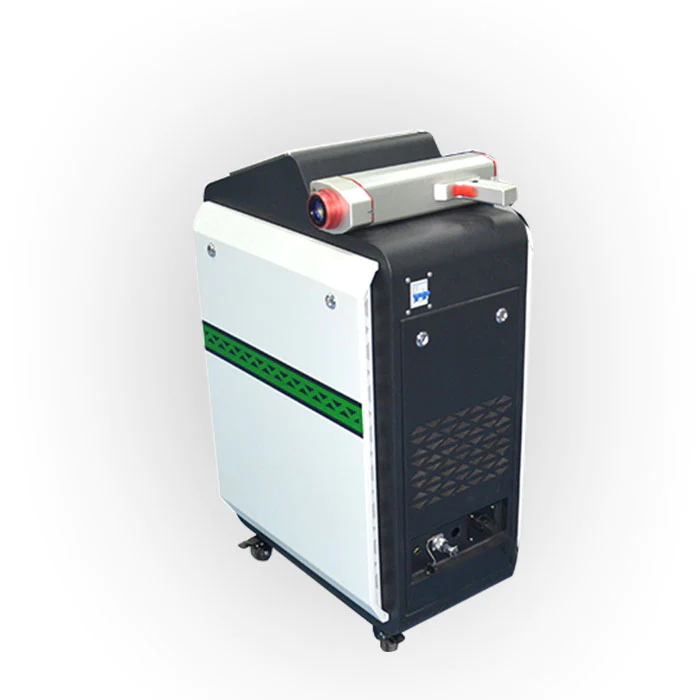

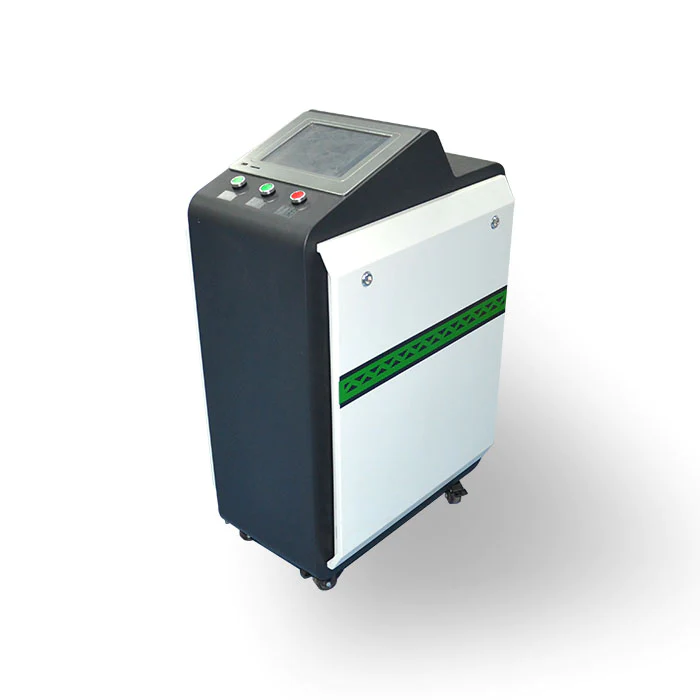

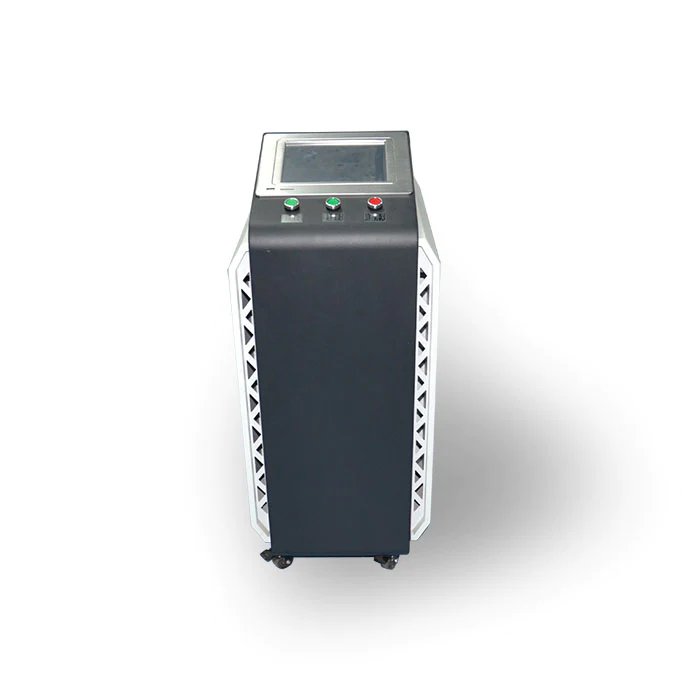

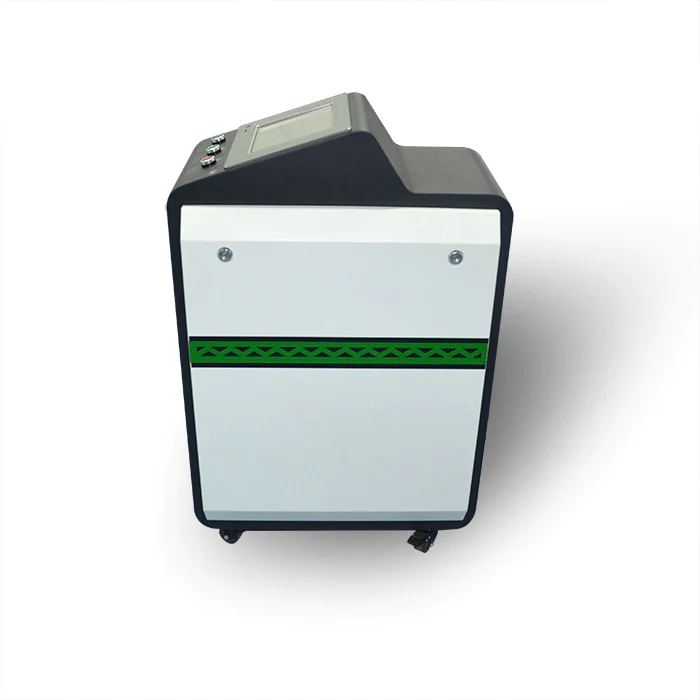

| Portable Fiber Laser Cleaning Machine 100W | |
| Model | BK-LC100 |
| Laser Source | JPT |
| Laser Power(W) | 100 |
| Wavelength(nm) | 1064 |
| Output Power(W) | 100 |
| Max.pulse energy(mJ) | 1.5 |
| Full Power Repetition Rate Range(kHz) | 67-1000 |
| Pulse Repetition Range(kHz) | 1-1000 |
| Pulse Duration(ns) | 10-350 |
| Cooling Method | Air Cooling |
| Spectral width@3dB(nm) | <15 |
| Beam Diameter（mm) | 6±0.5 |
| Power Adjustment Range(%) | 0-100 |
| Working Temperature/ Celsius | 0-40 |
| Scan Width (mm) | 1-110 |
| Length of Fiber(m) | 3m / 10Ft |
| Laser Class | IV |
Features:
- Non-Contact Laser Cleaning
- Easy Operation
- Fast Cleaning Speed
- Various Applications And Almost No Maintennance
Application Material

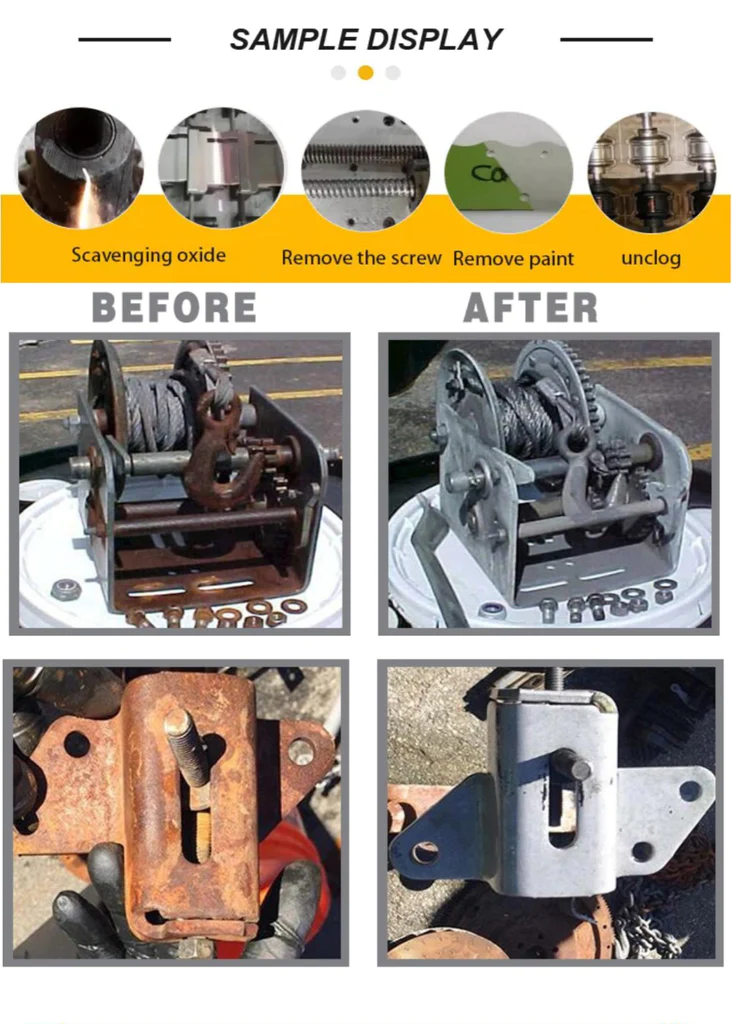

Laser cleaning equipment is a new generation of surface cleaning high-tech products. It is very easy to install, manipulate and achieve automate.Your parts can be be cleaned with no chemical reagents, no media, no dust and no water. With the advantage of manual adjustment of the focus, fit curved surface cleaning, good surface cleanliness and so on. Laser cleaning machine can clean the resin of subject surface, oil stains, stains, dirt, rust, coating, paint, etc.

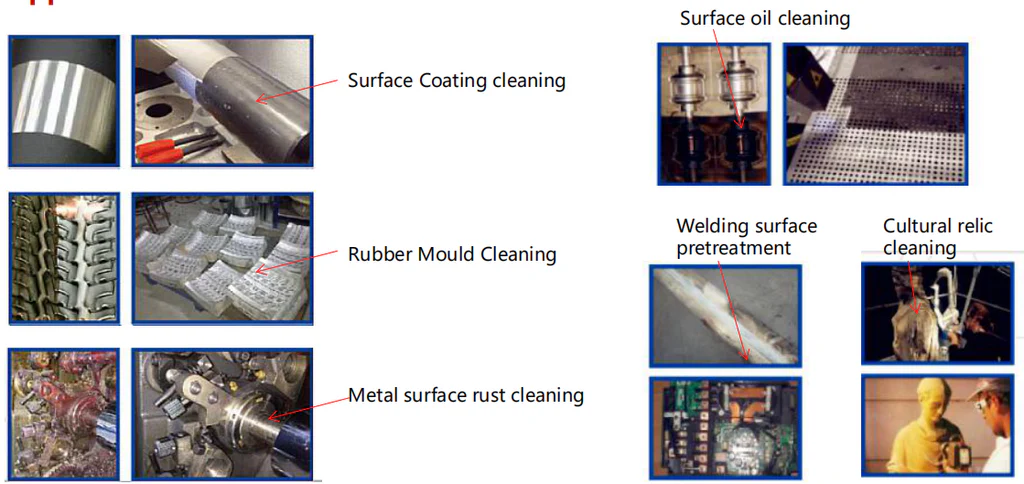

Application Industry
Mold industry, Military equipment industry, Precision machinery industry, Ship building and marine engineering industry, Construction machinery and heavy industry, Car manufacturer industry, Electronic and Semiconductor industry,nuclear power plant industry,Building facades and cultural relics protection industry,etc.
| Laser Cleaning Efficiency | ||||||||
| 60W – 200W | ||||||||
| Laser power(W) | 60 | 70 | 100 | 120 | 150 | 200 | ||
| Peak Power(KW) | 15 | 16 | 18 | 18-30 | 18-40 | 40 | ||
| Focus Sopt(mm) | <1 | |||||||
| Rusting(20um) | 2.0㎡/h | 3.0㎡/h | 4.0㎡/h | 4.8㎡/h | 6.0㎡/h | 8.0㎡/h | ||
| Oli Contamination (20um) | 2.5㎡/h | 3.5㎡/h | 4.5㎡/h | 5.3㎡/h | 6.5㎡/h | 8.5㎡/h | ||
| Aluminum Oxide Film | 1.5㎡/h | 2.0㎡/h | 3㎡/h | 3.6㎡/h | 4.5㎡/h | 6㎡/h | ||
| Rubber Residues | 4-5㎡/h | 6-7㎡/h | 8-10㎡/h | 9-12㎡/h | 11-15㎡/h | 13-18㎡/h | ||
| 300W – 1000W | ||||||||
| Laser power(W) | 300W/500W/1000W | |||||||
| Rusting Cleaning Efficiency | 10-60㎡/h | |||||||
| Oli Contaminated Cleaning Efficiency | 10-90㎡/h | |||||||
