With the Downdraft table, you can select between two operating system options: the Windows-based system featuring the all-integrated FlashCut CAD/CAM/CNC program, or the Linux-based system utilizing the HALO cutting program, QCad, and Inkscape for CAD design, and SheetCam for nesting operations.

Enhance your cutting capabilities with the Boss Downdraft Table. Choose between Windows-based operating system (featuring the all-in-one FlashCut CAD/CAM/CNC program), or the Linux-based computer system(QCad/Inkscape/SheetCam/Halo).

The FlashCut has the capabilities to auto nest, draw preprogrammed parts, and fix open contours in a drawing. The Linux system utilizes the Halo cutting program, along with Inkscape and QCad for CAD design, and SheetCam for nesting operations.

Explore the possibilities and maximize your productivity with our versatile table and software options.

Key Features

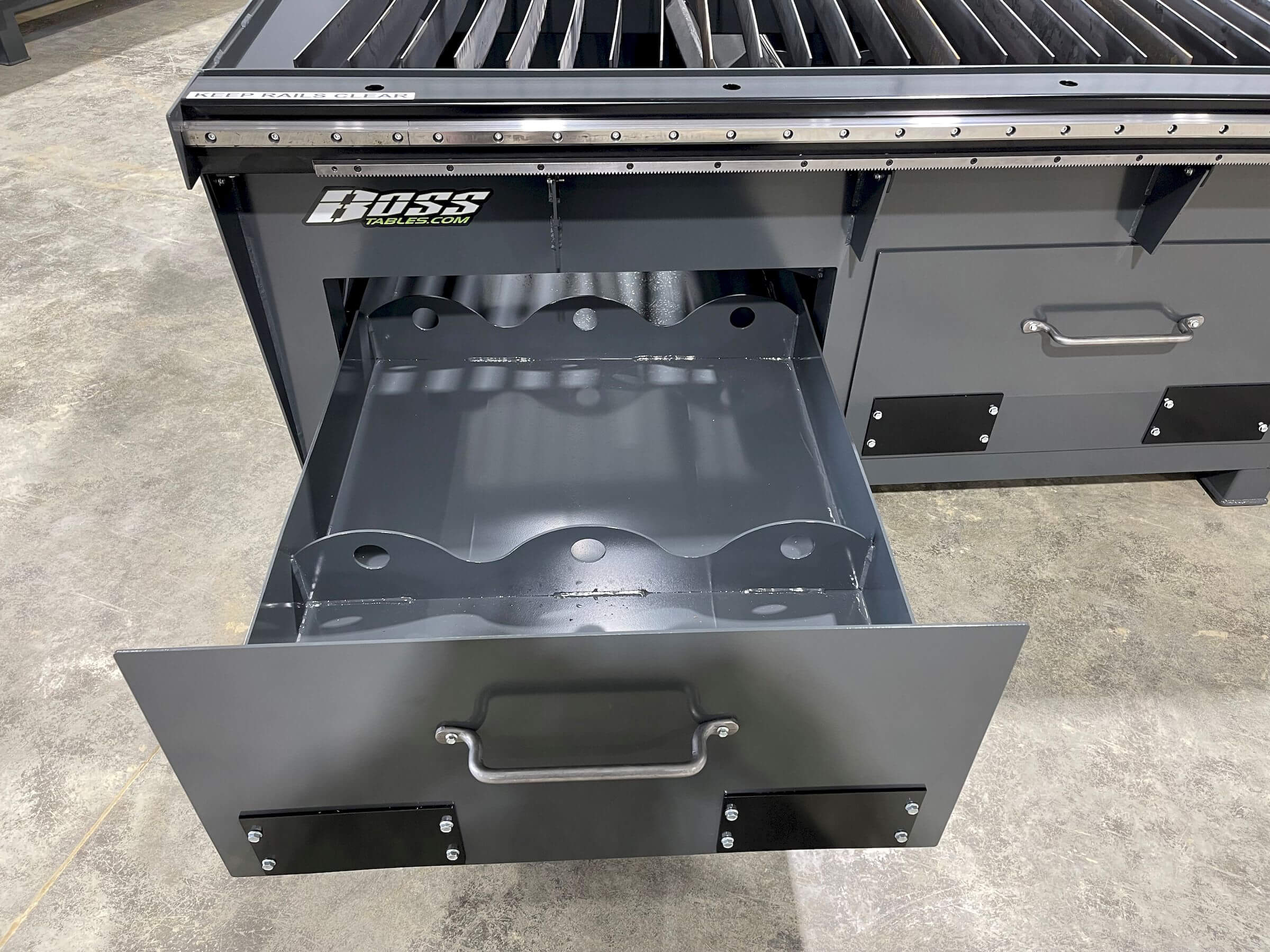

4 drawer system to collect parts and drop
Fork lift pockets and handles on drawers
Rigging eyes welded in drawers for lifting
Deflectors to direct parts into drawers
4- 18″ fan holes (adapters can be made to suit your needs)

Controlled by FlashCut and HALO Software’s

5-Inch Oversized Cut Area
Planetary Gear Boxes (No Belts Or Chains)
Collision Detection Capabilities
Ohmic Sensing Technology
Magnetic Torch (Breakaway Torch)
Industrial Bearings
Welded Frame With Adjustable Feet For Easy Leveling
Ball Screw Z-Axis
Precision German-Made Helical Gear Rack
10-Inch Under Gantry Clearance
Roller Ball Assistance For Loading
22-Inch Operation Screen
Industrial Motor Wiring

Exclusive Features For FlashCut Software

Integrated FlashCut Industrial CAD-CAM-CNC
Windows Operating System
Fanless Industrial Computer
750W AC Servo Motors
Stingray Digital Torch Height Control (DTHC)
Rapid Speed Of 1000 IPM
True Shape AUTO Nesting
Previous Cut THC Turn Off To Prevent Unwanted Diving
Automatic Lead-In On Restart
THC Performance History Chart
Cut Completion Time Progress Meter
Motor Current Sensing

Compatible with these Plasma Cutters

Powermax 45XP
Powermax 65 SYNC
Powermax 85 SYNC
Powermax 105 SYNC
Powermax 125
MAXPRO200

Compatible with HALO or FlashCut Controllers

The CNC table is compatible with both HALO CNC and FlashCut CNC systems, allowing users to choose their preferred operating system. HALO CNC excels in CAD, CAM, and control functions, providing a user-friendly interface for effortless design and cut file generation. Paired with SheetCam, HALO simplifies nesting and cut paths, ensuring precision with features like Velocity Anti-Dive and Digital Torch Height Control. Operating on a stable Linux-based system, HALO offers efficiency and cost-effectiveness. Meanwhile, FlashCut CNC, a Windows-based system, offers an ALL-IN-ONE CAD/CAM/CNC experience with features like automatic kerf compensation and true shape nesting, making it versatile for various oxy-fuel and plasma models.

Rotary Cutter – FlashCut

(Only available with FlashCut operating system)

Cuts 5″ Tube Directly on Your Plasma Table.
Includes 4-Jaw Chuck for Round Tube Cutting.
FlashCut CAD/CAM
Upgrade From 4-Axis to 5-Axis

Oxy Torch – HALO

Cut Up to 8 Inches Thick Steel with VICTOR MT310 Machine Torch
FlashCut-10 with 2D CAD/CAM/CNC and Enhanced Oxy Fuel Features
Includes Reverse Flow Check Valves
Compatible with Oxygen: Acetylene/Propylene
A Comprehensive Complete System

Oxy Torch – FlashCut

Cut Up to 8 Inches Thick Steel with VICTOR MT310 Machine Torch
FlashCut-10 with 2D CAD/CAM/CNC and Enhanced Oxy Fuel Features
Includes Reverse Flow Check Valves
Compatible with Oxygen: Acetylene/Propylene
A Comprehensive Complete System

Pneumatic Air Scribe – Pro

CP 9361 Scribe
Rigid Aluminum Mount with Linear Rail
Adjustable Up/Down pressure, and Hammer Strength
Valves Located on Back of Table

Pneumatic Air Scribe – Standard

CP 9361 Scribe
Sturdy Aluminum Mount with Linear Rail
Adjustable Up/Down Pressure and Hammer Strength
Valves Located on the Back of the Table

Router – Pro

Router Mounting, Programming, and Wiring:
Note: You’ll need to provide the spill board.

Router – Standard

Router Mounting, Programming, and Wiring:
Note: You’ll need to provide the spill board.

Computer Stand Cabinet

Stands at a Height of 39″ with Wheels for Mobility
Features a Locking Door with Key for Security
Equipped with a Convenient Shelf
Includes a Gas Strut Flexi Monitor Mount

Maintenance Plans – Varies

Keep your Boss Table running at peak performance with a Maintenance plan that suits your needs.

Boss will have an on-site technician replace key components and conduct a thorough inspection of your table.

Laser Pointer

Achieve precise and effortless torch alignment and positioning.

Hand Pendant System

Easily manage virtually every aspect of your FlashCut-based machine from the palm of your hand.
