    HD ELITE High-Definition Plasma

      For Quote or More Information
      please fill this form:

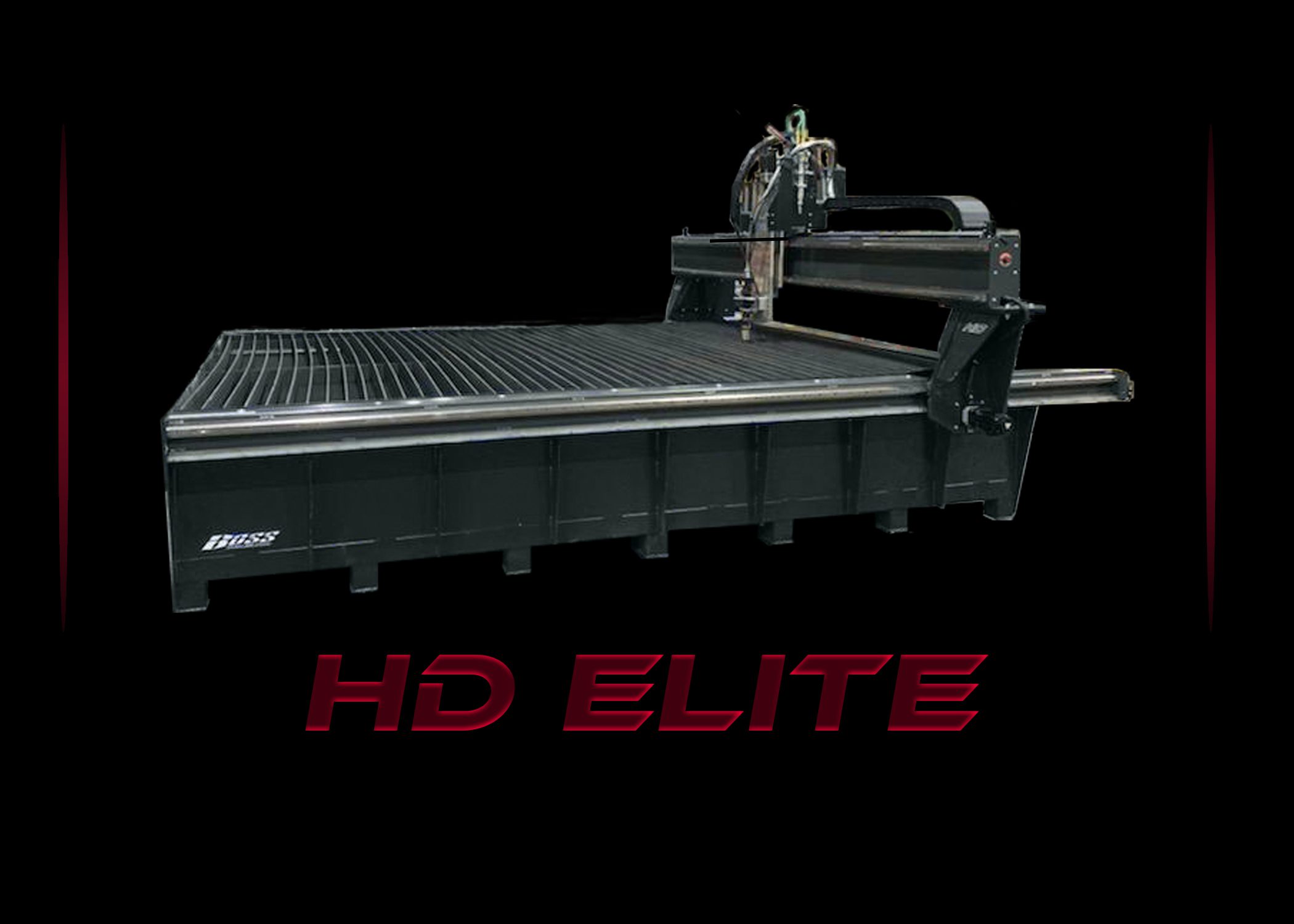

      HD ELITE (High-Definition)

      Boss HD Tables are compatible with Hypertherm MAXPRO200 and the Kjellberg Smart Focus series plasma units.

      Experience the unparalleled efficiency of our cutting-edge HD Elite solution, providing the most competitive pricing for top-tier High Definition equipment available today.

      Immerse yourself in the expansive 10-inch deep oversized cutting area of the HD Elite, complete with a clever built-in storage tank system, ensuring swift and effective water drainage. Say farewell to the tedious task of retrieving components from murky water as our design seamlessly streamlines the production process.

      Embrace convenience with our revolutionary ‘crab pot’ design, featuring easily detachable slag trays that simplify the once arduous process of cleaning the table, transforming it into a quick and effortless routine. Unlock the enhanced capabilities of the HD Elite, including its unique ability to facilitate drilling operations, adding a new dimension to its heavy-duty and robust construction.

      Effortlessly set up the HD Elite by simply connecting the Kjellberg or MAXPRO 200. Additionally, benefit from the seamless integration of the FlashCut CAD/CAM/CNC controller, ensuring a comprehensive and smooth operational experience, setting new standards for precision and performance.

      MVP
      MVP
      Read more
      Downdraft
      Downdraft
      Read more
      • Integrated FlashCut 10 HD Industrial CAD-CAM-CNC
      • Windows Operating System
      • Fanless Industrial Computer
      • Precise Plate Alignment Capabilities
      • 750w AC Servo Motors
      • High-Precision Nidec Shimpo Planetary Gear Boxes
      • Sub 3-Inch Arc-Minute Accuracy
      • Stingray Digital Torch Height Control (DTHC)
      • Helical Rack And Pinion Gears
      • Industrial Motor Wiring
      • Rapid Speed Of 1000 Inches Per Minute
      • Industrial Gantry With 12-Inch Clearance
      • Milled Precision Bearing Rails
      • True Shape AUTO Nesting
      • Previous Cut THC Turn Off To Prevent Unwanted Diving
      • Automatic Lead-In On Restart
      • THC Performance History Chart
      • Cut Completion Time Progress Meter
      • Motor Current Sensing
      • Pneumatically Water Level Control
      • 10-Inch Water Depth
      • Removable Slat Trays
      • 5-Inch Slats And 5-Inch Over-Sized Cut Area
      • 33-Inch Table Height
      • Collision Detection
      • Ohmic Sensing
      • Magnetic Torch (Breakaway Torch)
      • Industrial Bearings
      • Welded Frame With Adjustable Feet For Easy Leveling
      • Ball Screw Z-Axis
      • Roller Ball Assistance
      • Dedicated Operators Station With 22-Inch Operation Screen

      Compatible with these Plasma Cutters

      • 300 AMP Smart Focus
      • 400 AMP Smart Focus
      • 200 AMP Smart Focus
      • MAXPRO200

      Compatible with FlashCut Controller

      The FlashCut system is a Windows based operating system that features the ALL-IN-ONE CAD/CAM/CNC. FlashCut can effortlessly import 2D drawings, modify shapes using a convenient library, and perform advanced Boolean operations like welding shapes together. Identify and fix CAD errors seamlessly, export to other CAD software with DXF tools, and automatically generate fixture tabs. Handle DWG or DXF files with ease, compensate for kerf automatically, and enjoy true shape nesting for multiple files and sheets. Manage multiple sheets per job, edit charts for various oxy-fuel and plasma models, and implement corner looping strategies to minimize dross in corners.

      Maintenance Plans – Varies

      Keep your Boss Table running at peak performance with a Maintenance plan that suits your needs.

      Boss will have an on-site technician replace key components and conduct a thorough inspection of your table.

      Oxy with High/Low Preheat

      By utilizing High/Low preheat settings, you gain the capability to reduce pierce times, leading to enhanced overall job completion times.

      Rotary Cutter – HD

      • Cuts 8″ Tube Directly on Your Plasma Table.
      • Includes 4-Jaw Chuck for Round Tube Cutting.
      • FlashCut CAD/CAM
      • Upgrade From 4-axis to 5-axis

      Laser Pointer

      Achieve precise and effortless torch alignment and positioning.

      Hand Pendant System

      Easily manage virtually every aspect of your FlashCut-based machine from the palm of your hand.

      Pneumatic Air Scribe – HD

      • CP 9361 Scribe
      • Sturdy Aluminum Mount with Linear Rail
      • Adjustable Up/Down Pressure and Hammer Strength
      • Valves Located on the Back of the Table

      Regulator & Hose Kit

      Utilizing 2-stage regulators to deliver Hydrogen, Nitrogen, and F5 for non-ferrous cutting.

      Regulator & Hose Kit

      Utilizing 2-stage regulators to provide Oxygen and Argon for steel cutting.

      Air Booster

      Ensure an adequate pressure level to operate and maximize the performance of your HD Machine.
